SEALER (310/311)

SEALER (310/311)
POINT
  • Desktop sealer with a seal width of 1.6mm and length of 350mm
  • Two types that are designed specially for adhesion purpose and cutting purpose respectively are available

Available in:

  • Japan
  • North America
  • Europe
  • Oceania
  • Asia
  • Other Countries

SEALER (310/311)

Replacement Parts

  Part No. Name Specifications
images:308-2　Fluoroplastic tape 308-2 Fluoroplastic tape Qty: 5
images:A1251　Heating element A1251 Heating element Qty: 5, sealing
images:308-3　Adhesive tape 308-3 Adhesive tape Qty: 5
images:308-7　Mica tape 308-7 Mica tape Qty: 5
images:A1224　Pad A1224 Pad
images:A1223　Heating element A1223 Heating element Qty: 5, cutting
  • Because of the large heating capacity, mica tape is required to increase insulation properties.

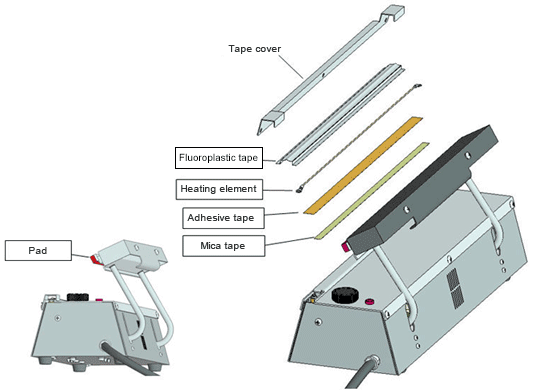

Replacement parts diagram

Notes when replacing the heating element and tape

The heating element breaks more easily when the tape has degraded.
When replacing the tape, we recommend you replace the Fluoroplastic tape, adhesive tape, and mica tape at the same time. When replacing the heating element, we recommend you replace all the types of tape as well.
