Soldering Iron/Ceramic Heater Type

FX-600

FX-600
POINT
  • Adjustable temperature range 200-500ºC
  • Replacement tips selectable from more than 30 types
  • Best suited for soldering of IC/LED and PWB

Available in:

  • Japan
  • North America
  • Europe
  • Oceania
  • Asia
  • Other Countries

Replacement Parts

  Part No. Name Specifications
images:A1600 Heating element A1600 Heating element 100-120V
images:A1601 Heating element A1601 Heating element 220-240V
images:B3707 Lock key B3707 Lock key
images:B3694 Knob B3694 Knob With screw
images:B1785 Nut B1785 Nut
images:B3469 Enclosure pipe B3469 Enclosure pipe
images:B3706 Fixing pipe B3706 Fixing pipe

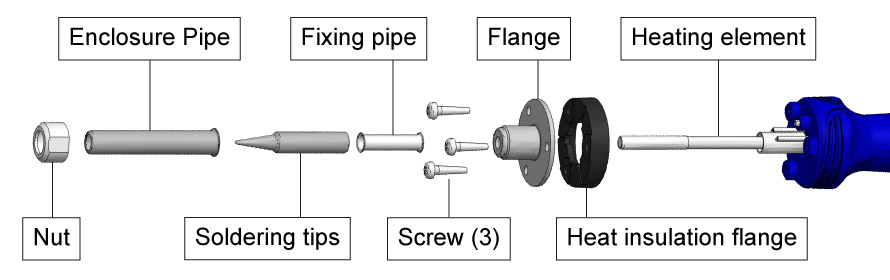

HAKKO FX-600 Exploded View
