Glue Gun / Sealer/Sealer

FV-801

FV-801

About "ICON"

POINT

Portable sealer that enables the sealing of up to 350 mm in length
Cutting mechanism is incorporated to cut off excessive end of bags after sealing
Capability is upgraded to seal aluminum-evaporated bags and gazette bags with a maximum thickness of 0.4 mm

Available in:

FV-801

Features
Packing List
Specifications
Soldering
Tip/Nozzle
Replacement Parts
Option
Handling-Aid

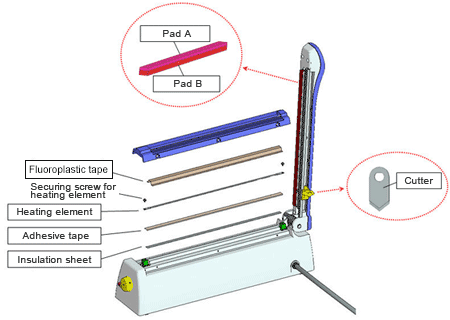

Replacement Parts

	Part No.	Name	Specifications
	A1530	Fluoroplastic tape	Qty: 5
	A1527	Heating element	Qty: 5, for sealing
	A1531	Adhesive tape	Qty: 5
	A1529	Insulation sheet	Qty: 5
	A1528	Heating element	Qty: 5, for cutting
	A1568	Parts set	for sealing
	A1532	Pad A
	A1533	Pad B
	A1534	Cutter	Blade only
	B3691	Cutter assembly

A1568 : Parts set / for sealing
(Heating element for sealing/2pcs, Insulation sheet/2pcs, Fluoroplastic sheet/5pcs, Adhesive tape/2pcs, Pad A/1pce and Pad B/1pce)
