Thermometer / Soldering Tester/Thermometer

HAKKO FG-102

HAKKO FG-102イメージ

Available in:

  • Japan
  • EU
  • Oceania
  • Asia
  • Other Countries
  • LEAD FREE
  • Tip temperature thermometer with traceability management system
  • Free of errors in temperature measurement
  • Free of transcription errors for measured temperature
  • Standardization of temperature measurement
  • Secure management of tip temperature records
  • Long life sensor AS5000 (with certificate of conformance) is equipped as standard.
Contact Us
Catalog
Manuals / MSDS / Engineering documents
Videos about this product
  • Features
  • Packaging List / Specifications
  • Soldering Tip / Nozzle
  • Replacement Parts / Option
  • Maintenance

Packing List

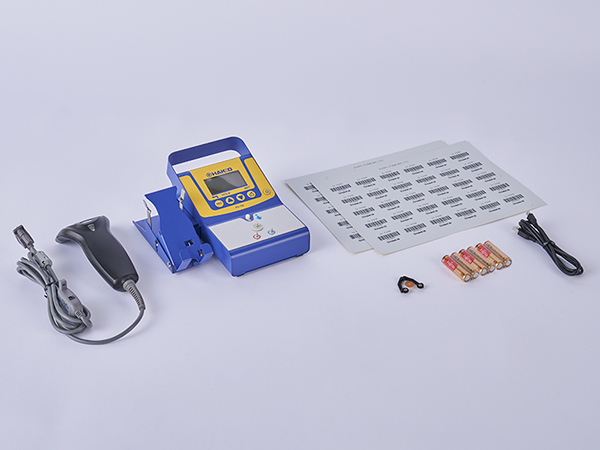

Model No. Packing List
FG-102 Unit, Battery (qty 6, for trial), Barcode reader, USB cable, Software (CD-ROM), Sensor (qty 10), Barcode sticker for soldering iron ID (qty 30), Barcode sticker for operator ID (qty 30), Instruction manual
FG-102
HAKKO FG-102 should be calibrated regularly as a Tester / Meter.
For details, please contact us or the distributors in your country.

仕様

Model No. FG-102
Power supply AA sized (LR6) battery × 6 (alkaline cell recommended)
Temperature resolution 1ºC
Temperature measurement range 0 to 700ºC
Temperature precision ±3ºC (300 to 600ºC)
±5ºC (other than above)
Temperature sensor K (CA)type thermocouple
Display LCD
Operating environment Ambient temperature/Humidity range : 0 to 40ºC, max.80% RH (without condensation)
Environmental conditions Applicable rated pollution degree 2 (according to IEC/UL 61010-1)
Dimensions 193(W)× 90(H)× 219(D)mm
Weight 0.93kg

* Dimensions : excluding barcode reader
* Weight (excluding battery and barcode reader)
* Temperature sensor can only be used ti measure temperatures below 500ºC. To measure higher temperatures, use an applicable temperature probe.
* Traceability management function can only be used for soldering irons.
