Soldering Iron/Station Type

FX-100

FX-100
POINT
  • Provides the heat to the tip effectively by 'Induction heater'
  • Efficient heat supply with power assist of unique technology
  • No calibration is required.
  • Suitable for soldering on multi-layer boards with a large grounded pattern inside
  • Micro Soldering Iron and Micro Hot Tweezers are available options.

Available in:

  • Japan
  • North America
  • Europe
  • Oceania
  • Asia
  • Other Countries

Soldering Tip/Nozzle

Basic knowledge of "How to select the right shape and size of the tip for micro soldering"

In FX-100, no soldering tip is included. Please purchase a "T31 Series" soldering tip separately.

T31 Series

Shape BC/C

For 350°C

  •  Shape-1BC

    T31-03BC1 Shape-1BC

  •  Shape-2.8BC

    T31-03BC28 Shape-2.8BC

For 400°C

  •  Shape-1BC

    T31-02BC1 Shape-1BC

  •  Shape-2.8BC

    T31-02BC28 Shape-2.8BC

For 450°C

  •  Shape-1BC

    T31-01BC1 Shape-1BC

  •  Shape-2.8BC

    T31-01BC28 Shape-2.8BC

Shape B

For 350°C

  •  Shape-BL

    T31-03BL Shape-BL

  •  Shape-SBL

    T31-03SBL Shape-SBL

    For narrow-pitch soldering

For 400°C

  •  Shape-BL

    T31-02BL Shape-BL

  •  Shape-SBL

    T31-02SBL Shape-SBL

    For narrow-pitch soldering

For 450°C

  •  Shape-BL

    T31-01BL Shape-BL

  •  Shape-SBL

    T31-01SBL Shape-SBL

    For narrow-pitch soldering

Shape D

For 350°C

  •  Shape-0.8D

    T31-03D08 Shape-0.8D

    * Discontinued

  •  Shape-0.8D

    T31B-03D08 Shape-0.8D

    * The succeeding tip of T31-03D08

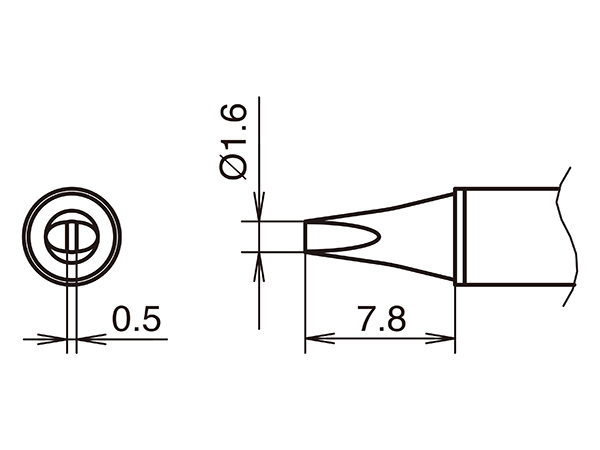

  •  Shape-1.6D

    T31-03D16 Shape-1.6D

  •  Shape-2.4D

    T31-03D24 Shape-2.4D

    * Discontinued

  •  Shape-2.4D

    T31B-03D24 Shape-2.4D

    * The succeeding tip of T31-03D24

  •  Shape-5.2D

    T31-03D52 Shape-5.2D

    * Shifting to T31B-03D52

  •  Shape-5.2D

    T31B-03D52 Shape-5.2D

  •  Shape-0.8WD

    T31-03WD08 Shape-0.8WD

For 400°C

  •  Shape-0.8D

    T31-02D08 Shape-0.8D

    * Discontinued

  •  Shape-0.8D

    T31B-02D08 Shape-0.8D

    * The succeeding tip of T31-02D08

  •  Shape-1.6D

    T31-02D16 Shape-1.6D

  •  Shape-2.4D

    T31-02D24 Shape-2.4D

    * Discontinued

  •  Shape-2.4D

    T31B-02D24 Shape-2.4D

    * The succeeding tip of T31-02D24

  •  Shape-5.2D

    T31-02D52 Shape-5.2D

    * Shifting to T31B-02D52

  •  Shape-5.2D

    T31B-02D52 Shape-5.2D

  •  Shape-0.8WD

    T31-02WD08 Shape-0.8WD

For 450°C

  •  Shape-0.8D

    T31-01D08 Shape-0.8D

    * Discontinued

  •  Shape-0.8D

    T31B-01D08 Shape-0.8D

    * The succeeding tip of T31-01D08

  •  Shape-1.6D

    T31-01D16 Shape-1.6D

  •  Shape-2.4D

    T31-01D24 Shape-2.4D

    * Discontinued

  •  Shape-2.4D

    T31B-01D24 Shape-2.4D

    * The succeeding tip of T31-01D24

  •  Shape-5.2D

    T31-01D52 Shape-5.2D

    * Shifting to T31B-01D52

  •  Shape-5.2D

    T31B-01D52 Shape-5.2D

  •  Shape-0.8WD

    T31-01WD08 Shape-0.8WD

Shape I

For 350°C

  •  Shape-I

    T31-03I Shape-I

  •  Shape-IL

    T31-03IL Shape-IL

For 400°C

  •  Shape-I

    T31-02I Shape-I

  •  Shape-IL

    T31-02IL Shape-IL

For 450°C

  •  Shape-I

    T31-01I Shape-I

  •  Shape-IL

    T31-01IL Shape-IL

Shape J

For 350°C

  •  Shape-0.2RSSB

    T31-03JS02 Shape-0.2RSSB

    For narrow-pitch soldering

  •  Shape-0.2RSB

    T31-03J02 Shape-0.2RSB

  •  Shape-0.2RLB

    T31-03JL02 Shape-0.2RLB

For 400°C

  •  Shape-0.2RSSB

    T31-02JS02 Shape-0.2RSSB

    For narrow-pitch soldering

  •  Shape-0.2RSB

    T31-02J02 Shape-0.2RSB

  •  Shape-0.2RLB

    T31-02JL02 Shape-0.2RLB

For 450°C

  •  Shape-0.2RSSB

    T31-01JS02 Shape-0.2RSSB

    For narrow-pitch soldering

  •  Shape-0.2RSB

    T31-01J02 Shape-0.2RSB

  •  Shape-0.2RLB

    T31-01JL02 Shape-0.2RLB

Shape K

For 350°C

  •  Shape-KU

    T31-03KU Shape-KU

For 400°C

  •  Shape-KU

    T31-02KU Shape-KU

For 450°C

  •  Shape-KU

    T31-01KU Shape-KU
